Product Description

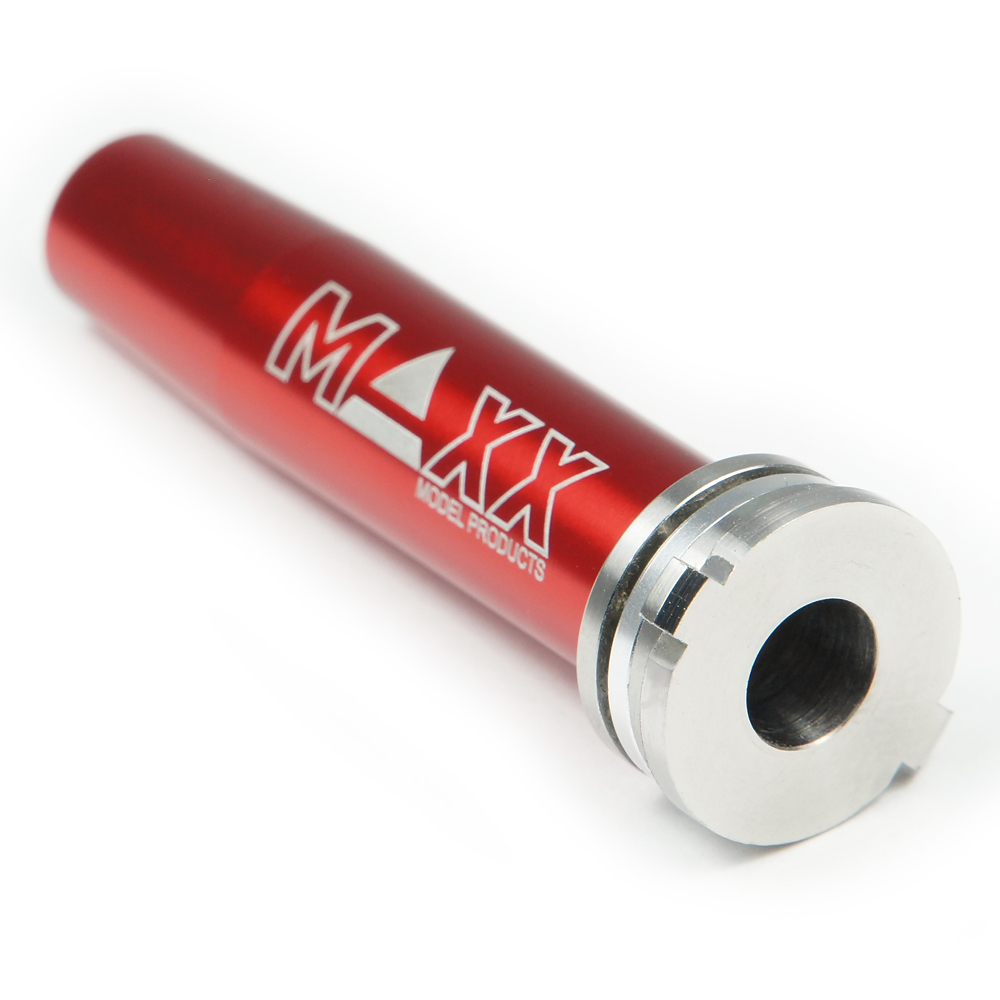

CNC Stainless Steel/Aluminum Spring Guide Thru-Hole is specifically designed for Bolt Recoil Shock System (BRSS) to keep the spring in line and allow the spring to rotate on shaft during high compression.
This Spring Guide Thru-Hole is machined with a 6.8mm through hole on stainless steel hub to allow the pushrod to go through thrust bearing and spring guide without any restriction.
The Spring Guide Thru-Hole is also equipped thrust ball bearing to reduce spring stress and breakage during high speed spring compression. Made of Stainless Steel and Aluminum.
| Includes | |
 |
1 x CNC Stainless Steel/Aluminum Spring Guide Thru-Hole |
| Specification |
|
Hub Thru-Hole Diameter: 6.8mm |
|
Hub Outer Diameter: 16mm |
|
Shaft Outer Diameter: 10.8mm |
|
Shaft Inner Diameter: 7mm |
|
Shaft Length: 44.5mm |
|
Overall Length: 51.5mm |
|
Material: Stainless Steel and Aluminum |
| Features | |
|
Specifically designed for Bolt Recoil Shock System (BRSS) |
|
Stainless Steel and Aluminum construction |
|
Machined 6.8mm through hole on stainless steel hub |
|
Allowed the pushrod to go through thrust bearing and spring guide without any restriction |
|
Equipped thrust ball bearing to reduce spring stress and breakage |
|
Aligned spring in line and rotate on shaft during high compression |
|
Strong stainless steel hub chamfer shoulder designs |
| Weight | |
|
13.08 grams |
| Usage | |
|
Used for Bolt Recoil Shock System (BRSS) |
| Requires | |
|
Wearing eye protection is recommended |
|
Use proper tools for disassembly and reassembly the spring guide with great care due to spring tension |
|
Bearing lubricant oil/grease is recommended for smooth operation |
| Instruction | |
|
Instruction Manuals are included |
